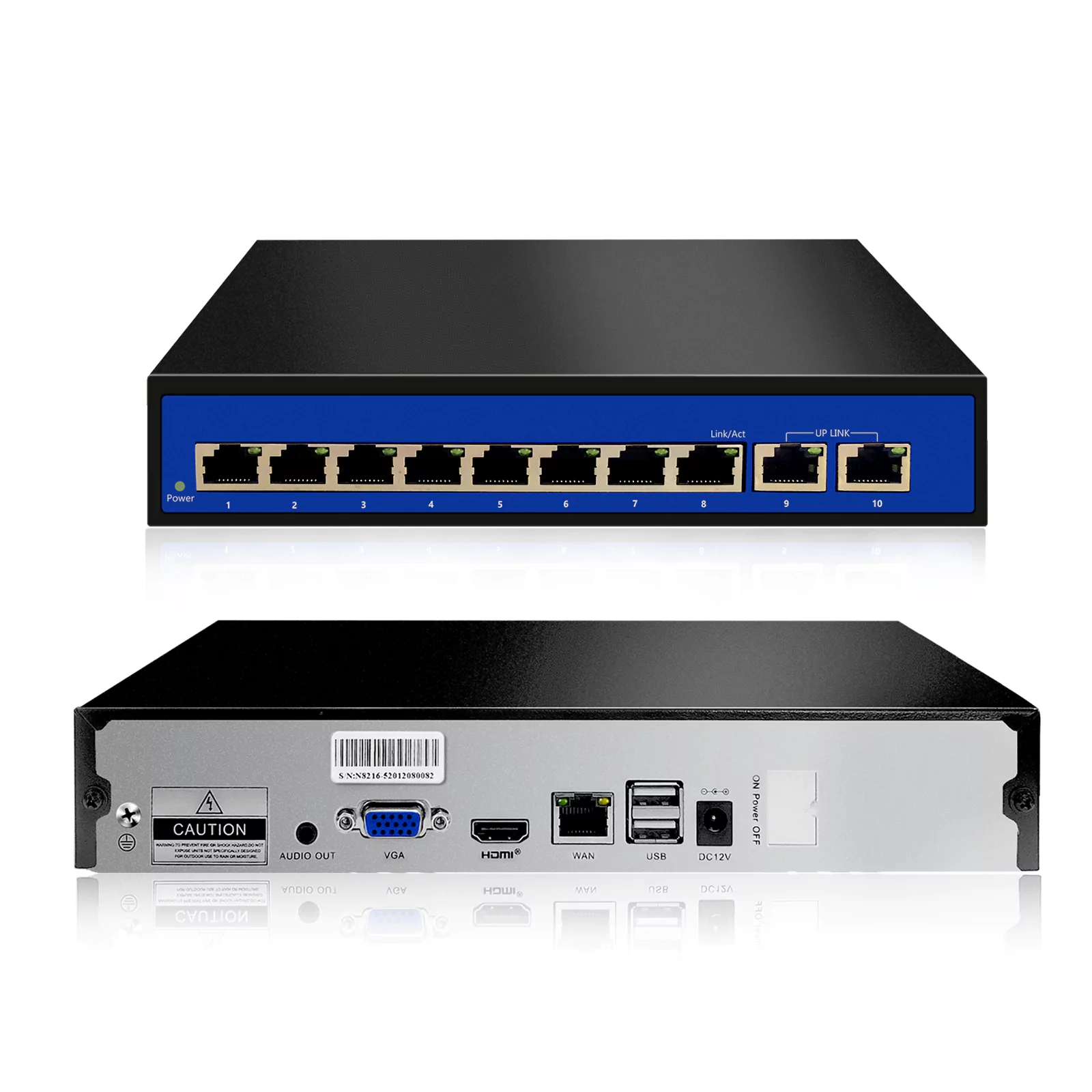

8MP 4K 16CH NVR +15V POE Switch For Eyessys Security Camera Systems

NVR System

• Main processor:Technical grade embedded microprocessor
• Operating system:Embedded LINUX operating system
• System resource:Multi-channel real-time recording synchronously, multi-channel real-time playback,multi-channel multi-user network operation, USB back up.
• Operation interface:16bit real color GUI interface support mouse operation
• Preview:1/4/6/8/16
• Image encode:H.265/H.264
• Monitor quality:VGA,HDMI:High definition
• Video input:8*4K IP Camera
• Motion detection:Support

Audio

• Audio compression:G.711A

Record&Playback:

• Record mode:manual>alarm>motion detection>timing
• Local playback:4K
• Video search:Time,date, event, channel search

Storage&Back

• Video storage:Local HDD,Network
• Back up mode:Network backup, USB portable HDD,USB port,SATA port
• Video output:1ch VGA,1ch HDMI HD output
• Audio Out:3.5mm Audio Out Port
• Alarm I/O:NO
• Network port:1*RJ45 1000M self-adaptive Ethernet port;

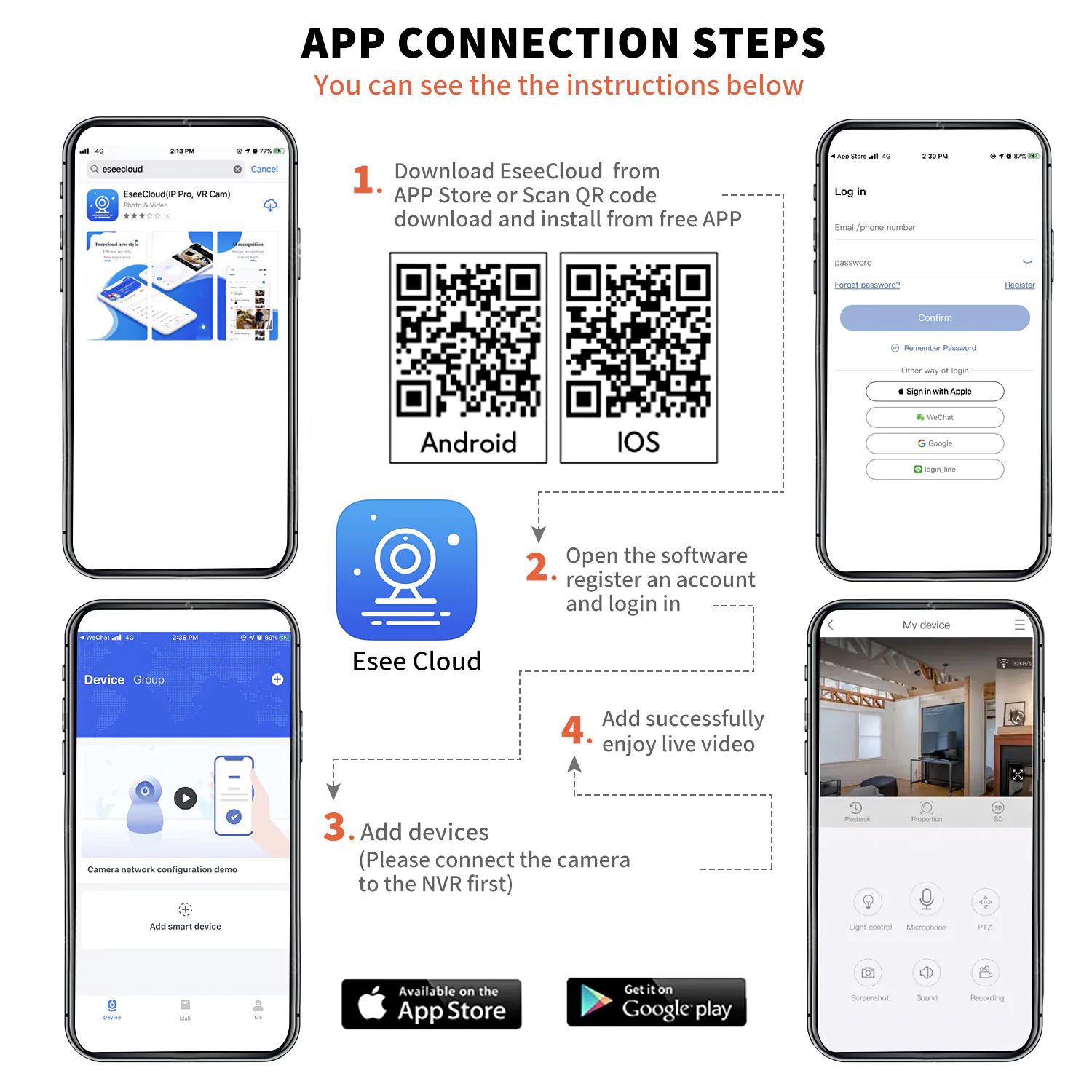

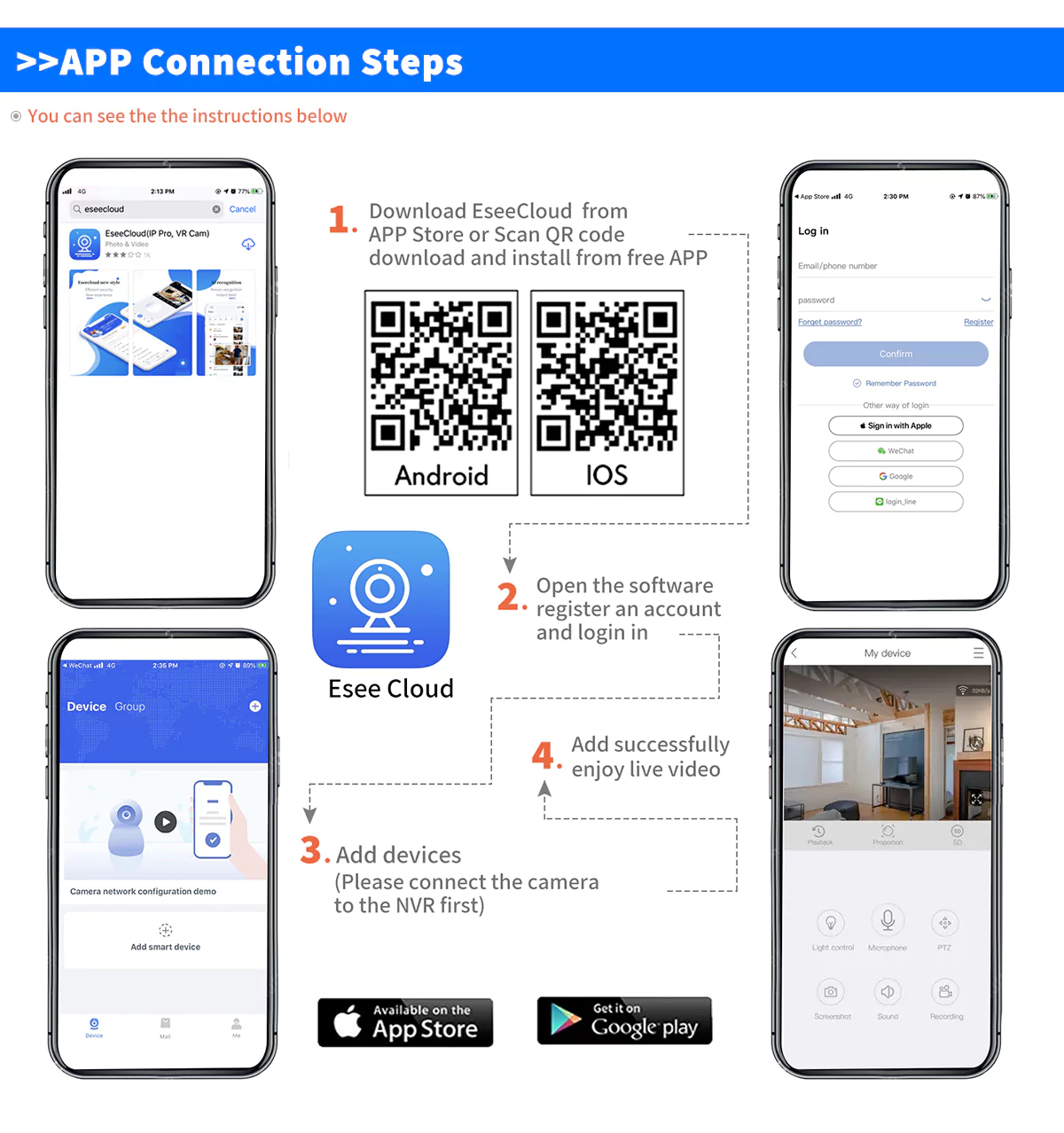

• PC/Laptop Remote:Support web, PC Client “VMS”;iPhone/Andriod/
• USB port:2*USB2.0 port for mouse and usb disk
• HDD port:1 SATA ports,max support 8TB (HDD is option)
• ONIVF:Support ONIVF, Access third party

POE switch

• 10*10/100Mbps adaptive RJ45 ports(8-Port POE+2-Port UPlink),
• Power:Input 15V DC input 110V-250V
• Installation:Desktop/Rack mounting
• Environment specification Operating temperature -10-55℃(32-104℉)
• Storage temperature -40-70℃(14-158℉)
• Operating humidity 90% maximum relative humidity, non-condensing
• Storage humidity 95% maximum relative humidity, non-condensi
