9 Channels DC12V 10 Amp PTC Reset Fuse CCTV Power Supply

$29.99

  • OUTPUT DC Port: 9 Channel
  • OUTPUT VOLTAGE: DC 12V
  • RATED CURRENT: DC 5A
  • RATED POWER: 60W
  • INPUT VOLTAGE RANGE: AC 100-120V, AC 200-240V, 50Hz / 60Hz
  • FREQUENCY RANGE: 47-63HZ
  • LEAKAGE CURRENT: 1mA/240VAC
  • ENVIRONMENT: WORKING TEMP -10~+60°C
  • WORKING HUMIDITY: 20-90%RH non-condensing
  • STORAGE TEMP,HUMIDITY: -20~+85°C,10-95%RH
  • Shell Material: Metal case / Aluminum case

CCTV Power Supply Specification:

  • Input: 100-240VAC; Output: 12VDC ; Supply Current: 10Amp; Max. Amp: 1.1Amp/Channel; DC12V Regulator CCTV Power Supply Box, 18 Outputs with PTC Fuse

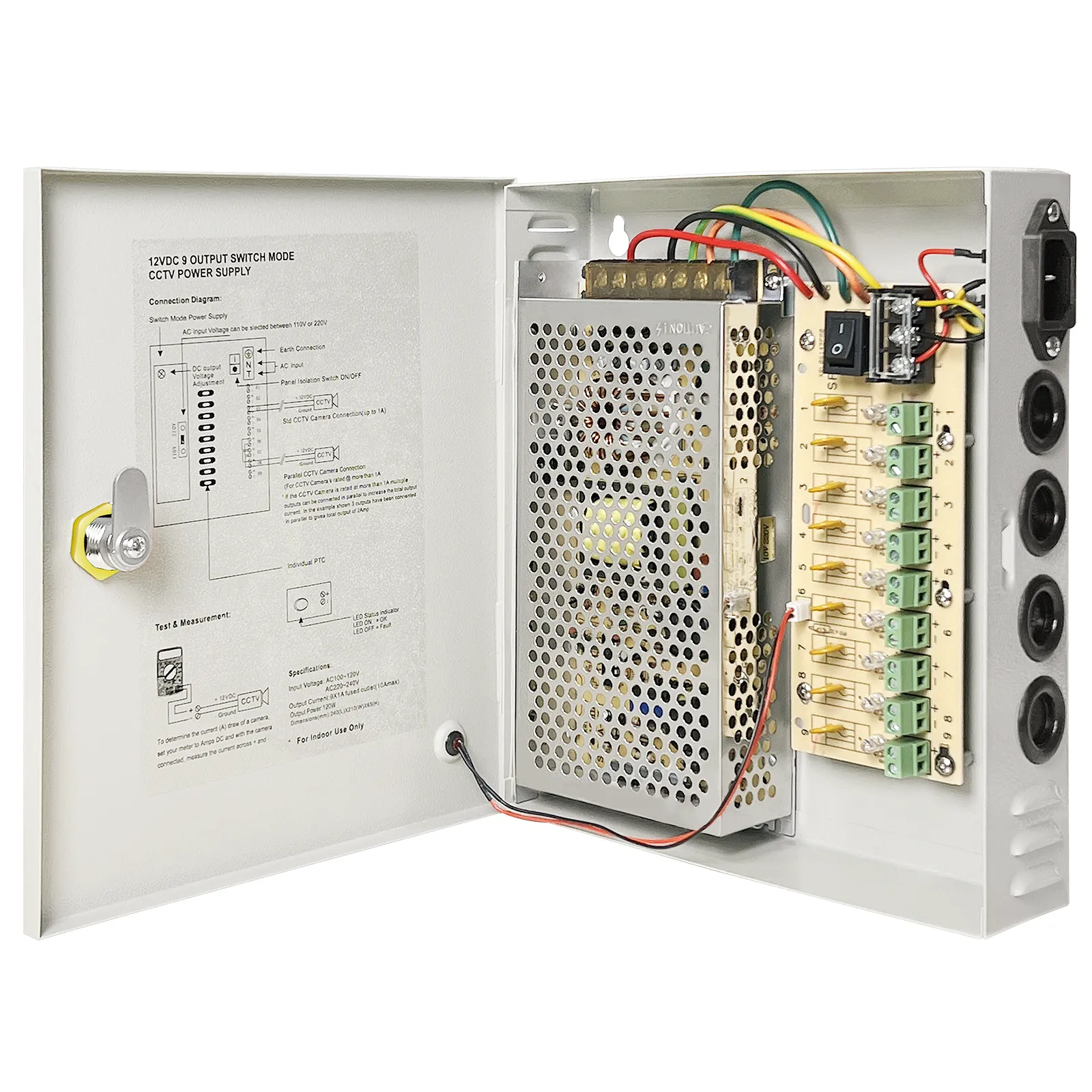

  • Each channel has separate reset fuse and LED indicator,it can ensure short-circuits and surges will not affect other channels.
  • More convenience,no need to change the fuse.When over current happens, the power supply will automatically switch to self-protection status, after a while, the switch back to normal.

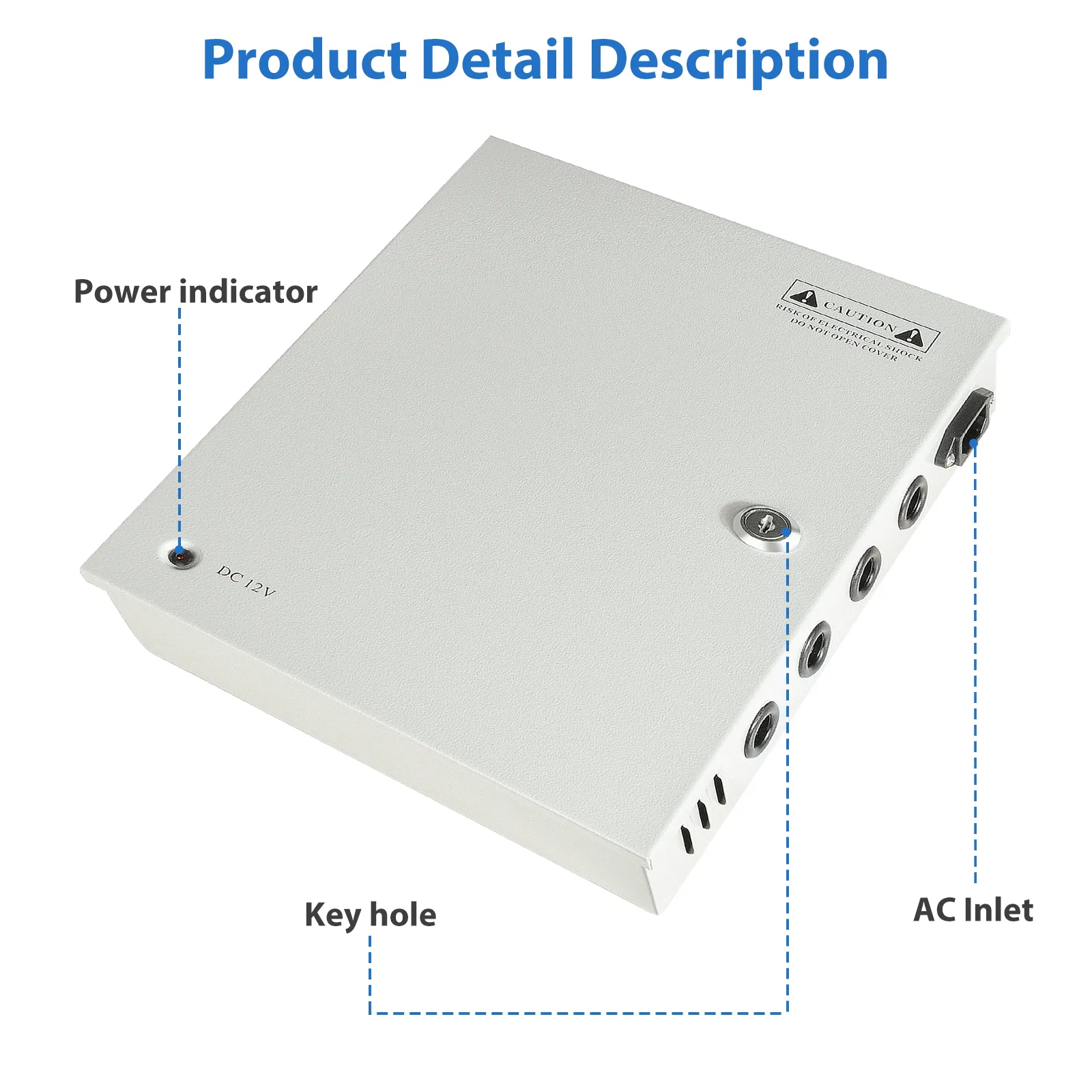

  • The metal shell is Wear-resistant, long lasting,lock wit keys,safety to use.
  • This DC12V 10 Amp Power Supply has 9 channels include AC Plug and Lock.

Package Include:

  • 1*Power Supply Metal Box
  • 1*AC Plug
  • 1*Lock Key
  • 1*screws set
  • 1*Spare Fuses
Weight 2.6 lbs

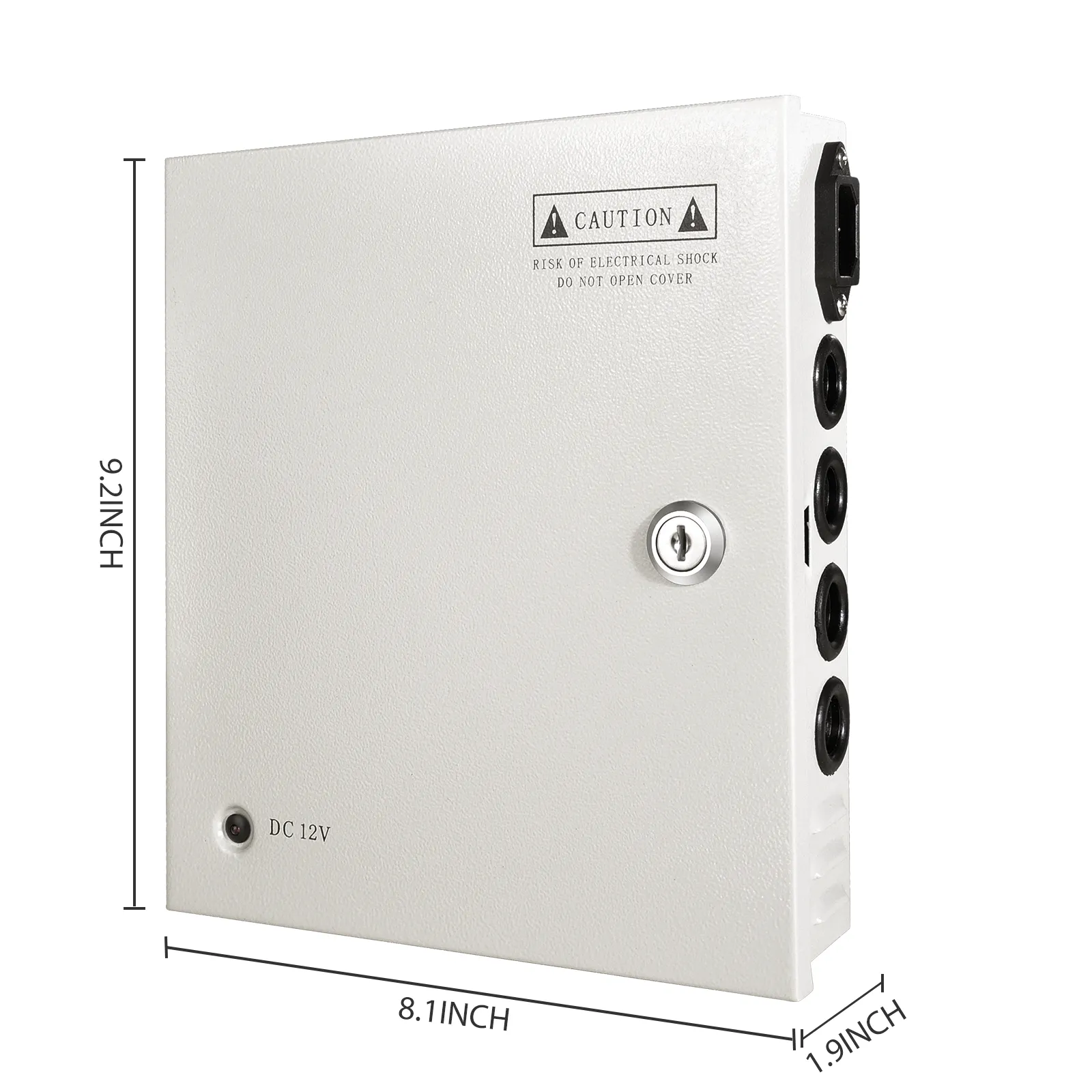

Dimensions 9 × 8 × 2.2 in
