Camera Description:

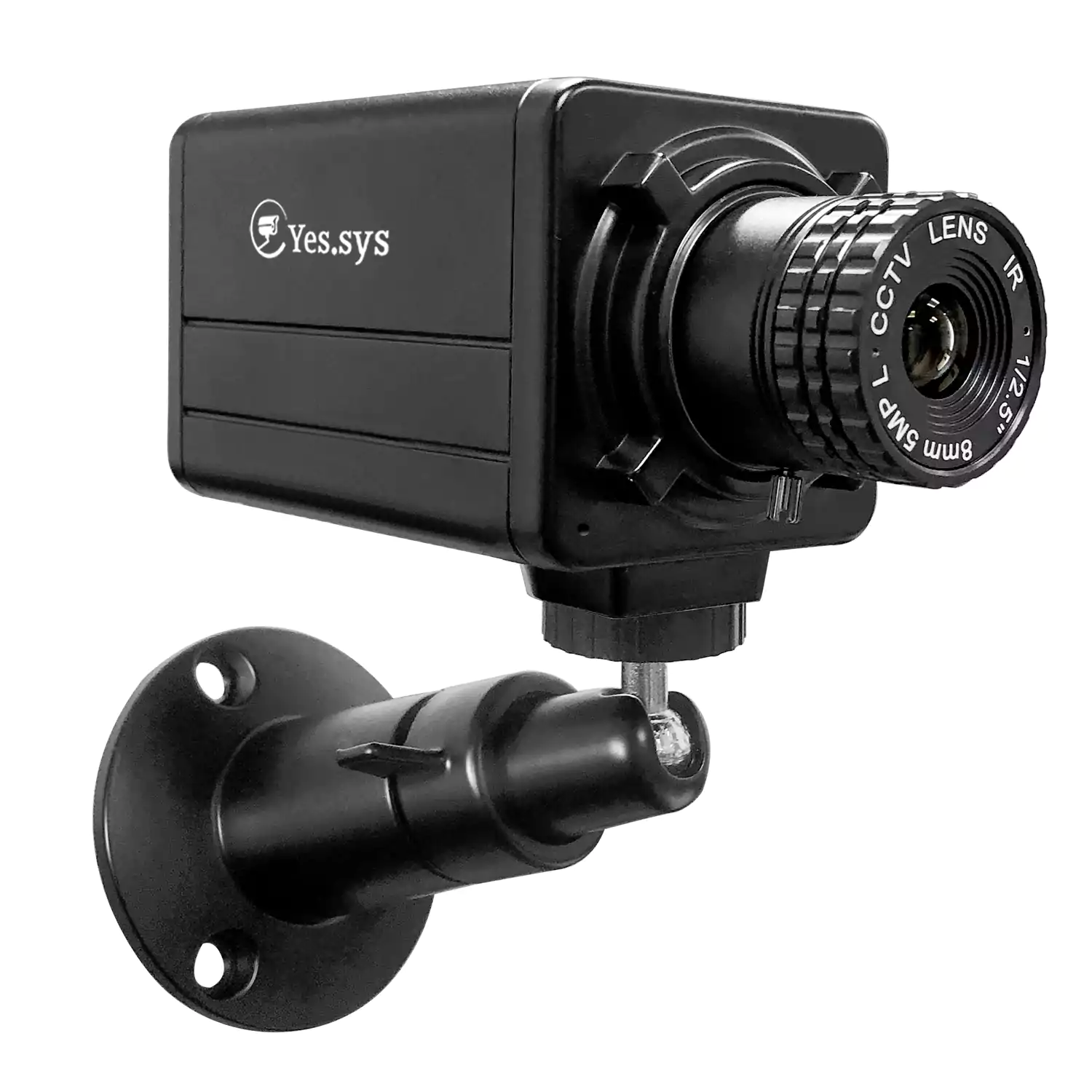

This industrial 8MP/5MP IP short box design poe camera delivers forensic-grade imaging with black-light technology (0.001Lux), featuring a fixed 8mm lens and 3D digital noise reduction. Encased in vandal-resistant metal housing with IP67 protection, it streams H.265+ encoded video via PoE (IEEE 802.3af) and integrates seamlessly with ONVIF/RTSP-compliant NVRs for enterprise surveillance.
Key Compatibility:
-
ONVIF Profile S & RTSP certified
-
NVR Platforms: Hikvision, Dahua, Uniview, Honeywell
-
Third-party VMS: Blue Iris, Milestone, ZoneMinder
-
Mobile Access: iOS/Android P2P cloud service
-

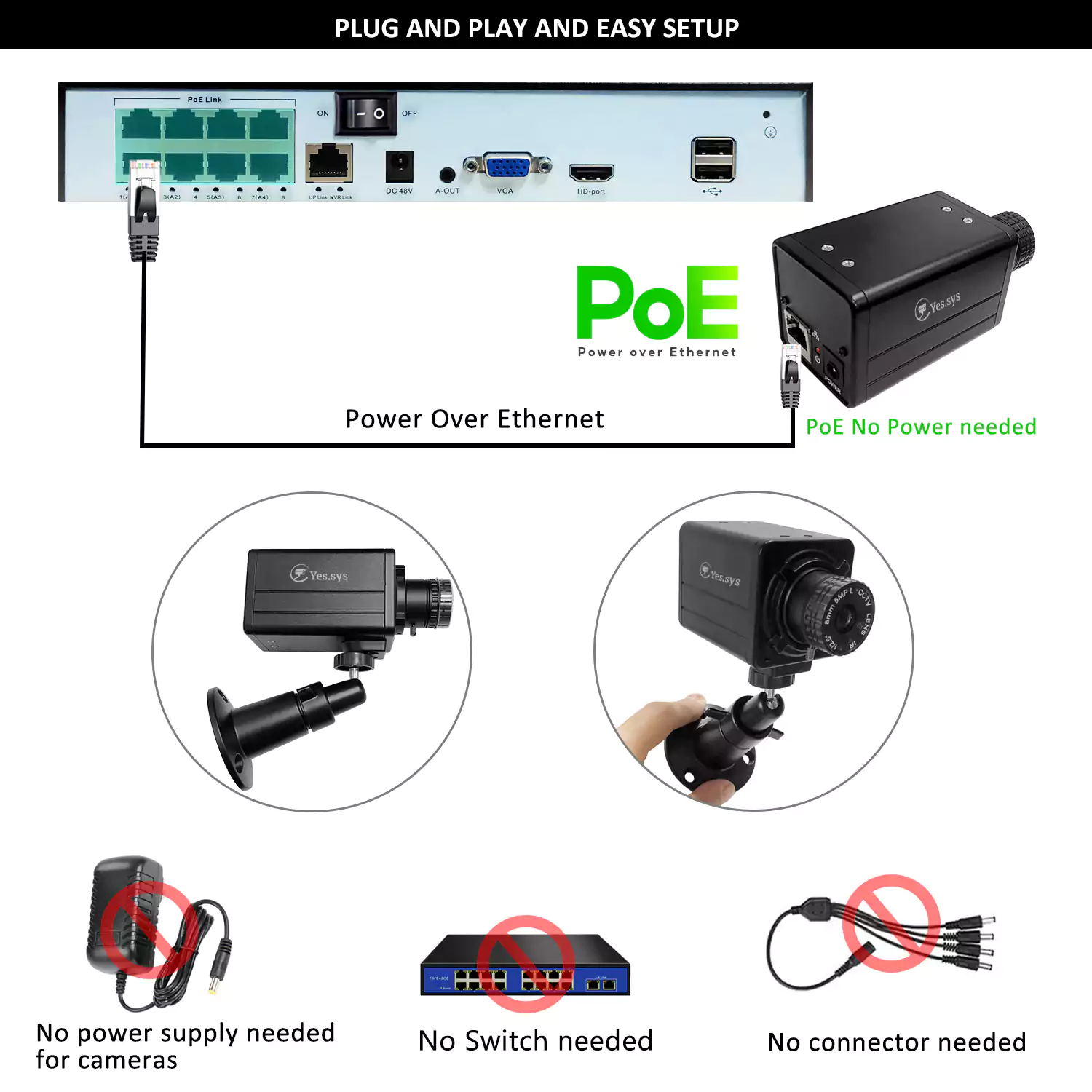

PoE Standard: IEEE 802.3af
Professional IP Box Camera Features:
① Black-Light Imaging Core
-
Dual-resolution: 8MP(3840×2160) / 5MP(2592×1944)
-
0.001Lux ultra-low-light sensitivity (B/W mode)
-
8mm fixed lens with 30° FOV for focused monitoring
② Intelligent Video Optimization
-
3D-DNR + 120dB True WDR for high-contrast scenes
-
Auto contrast enhancement & dynamic range adjustment
-
H.265+/H.264 dual-stream compression
③ Secure Remote Management
-
P2P cloud access with instant alarm push
-
Military-grade data encryption (SSL/TLS)
-
RTSP streaming for multi-platform decoding
Technical Specifications:
Parameter |
Specification |
Resolution |
8MP/5MP switchable |
Sensor |
1/1.8″ progressive CMOS |
Min. Illumination |
0.001Lux (B/W) |
Lens |
8mm fixed (30° FOV) |
WDR |
120dB digital WDR |
Compression |
H.265+/H.264 |
Protocols |
ONVIF, RTSP, HTTPS, P2P |
Weather Resistance |
IP67 metal housing |
PoE Standard |
IEEE 802.3af |

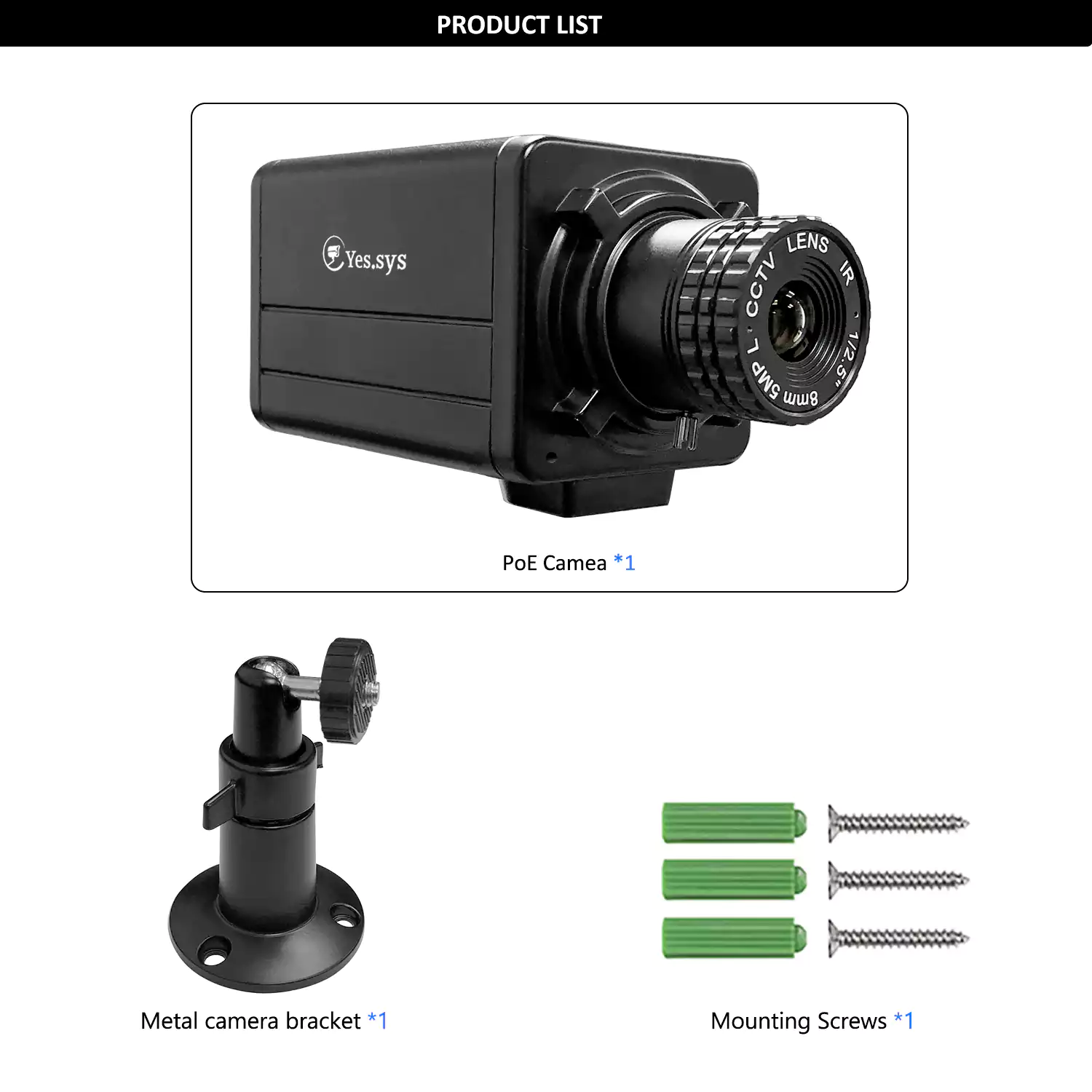

Package Contents:
1 × 8MP/5MP IP Box Camera
